Commercial Vacuum Sealer Machine with Chamber and External Vacuum

A Commercial Vacuum Sealer Machine must do more than reach a high vacuum number. For food processors, 餐厅, 发行商, and private-label equipment buyers, actual sealing performance depends on how vacuum pressure, 泵流量, 袋子结构, 密封宽度, 食物水分, and cycle frequency work together.

This becomes particularly important when one operation handles both liquid-rich foods and conventional dry products. External vacuum sealing is efficient for routine textured-bag packaging, but liquids can be pulled toward the vacuum channel. Chamber sealing solves this problem differently by reducing pressure around the entire package.

YUMYTH designed the CVS101 Commercial Vacuum Sealer Machine around these two operating conditions, integrating chamber vacuum and external vacuum into one platform rather than forcing one vacuum method to handle every packaging task.

Why Chamber and External Vacuum Are Needed for Different Foods

An external vacuum system removes air through the bag opening. For air to travel efficiently, the bag normally requires embossed channels that prevent the two film surfaces from collapsing together before evacuation is complete.

This works well for:

•Dry meat and seafood

•坚果, 谷物, 以及咖啡

•Portion-packed ingredients

•Textured vacuum bags

•Products that cannot easily fit inside a chamber

The problem changes when free liquid is present. Sauce, 腌料, or meat juice may move toward the vacuum inlet before the desired vacuum level is reached.

A chamber Commercial Vacuum Sealer Machine reduces pressure inside the entire chamber. Pressure around the bag and inside the package falls together, allowing liquid products to be handled more predictably before sealing.

Typical chamber applications include:

•Soups and sauces

•Marinated meat

•Moist seafood

•Prepared meals

•Liquid-containing food portions

•Smooth commercial vacuum bags

This is the main technical reason YUMYTH combines both systems in the CVS101.

-98kPa and 40L/min Describe Different Vacuum Characteristics

One of the most common purchasing mistakes is comparing vacuum sealers only by pressure.

The CVS101 chamber system is specified at -98kPa with 40L/min airflow, while external vacuum reaches -80kPa with 8L/min airflow.

These figures measure different properties.

参数	What It Measures	CVS101 Chamber	CVS101 External
真空压力	可实现的真空深度	-98kPa	-80kPa
泵流量	Air displacement rate	40升/分钟	8升/分钟
工作宽度	最大密封宽度	28厘米	30厘米
Seal Structure	密封配置	3mm × 2	3mm × 1
袋型	Compatible bag structure	Smooth + textured	有纹理

Vacuum pressure determines how far pressure can be reduced; airflow determines how quickly air can be moved.

A 40L/min system therefore should not automatically be described as five times faster than an 8L/min system. Actual evacuation time also depends on:

•Chamber free volume

•Product displacement

•Package volume

•Target vacuum pressure

•Vacuum-time setting

•Seal-time setting

For a Commercial Vacuum Sealer Machine, pressure and flow should always be evaluated together.

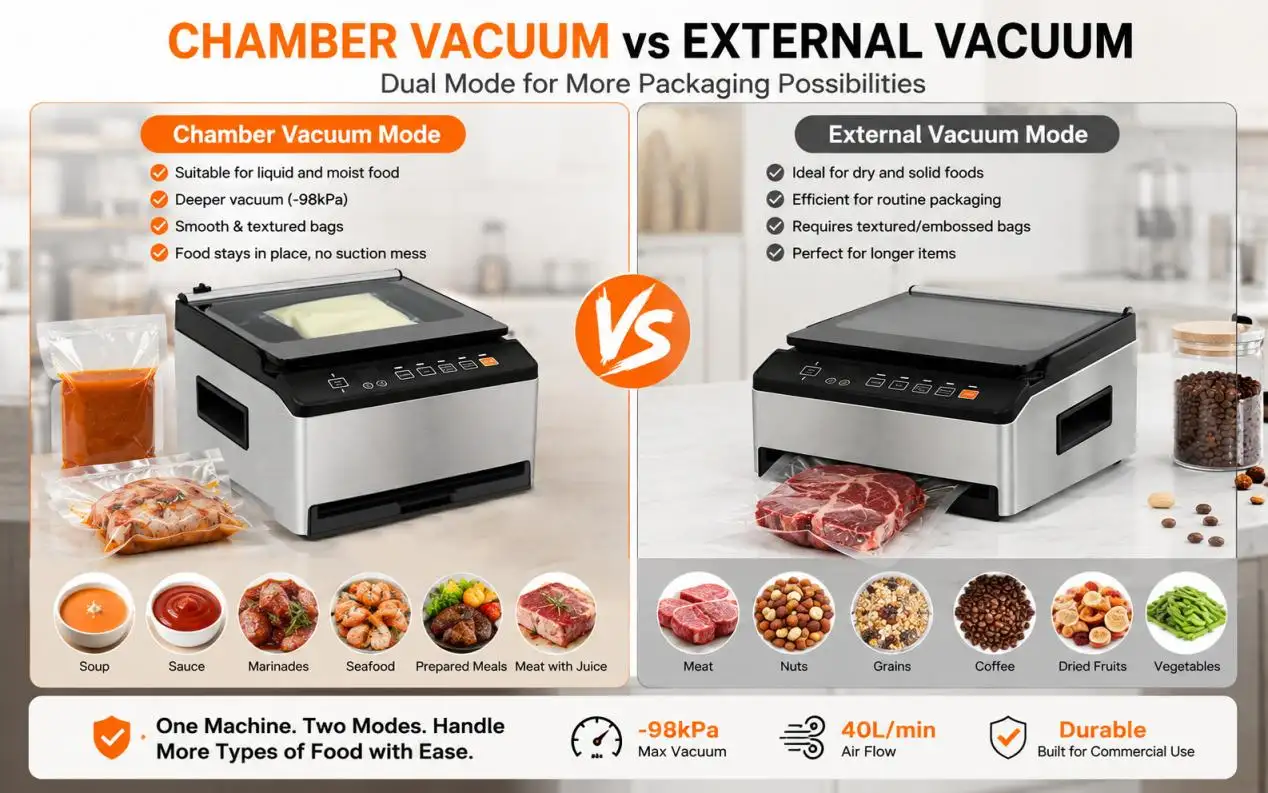

Chamber Vacuum vs. External Vacuum: Selecting the Correct Mode

The dual-mode system is useful because each method solves a different packaging problem.

Packaging Condition	Chamber Vacuum	External Vacuum
Liquid food	Preferred	限量版
湿润的食物	Preferred	应用依赖
干粮	Suitable	Suitable
光滑的弹药袋	Suitable	Not suitable
压花包	Suitable	Suitable
Deeper vacuum requirement	Better suited	中等
Large/long package	Chamber-size limited	More flexible
Routine dry-food sealing	Suitable	高效

A dual-mode Commercial Vacuum Sealer Machine therefore makes most sense where packaging conditions change frequently rather than where one identical package is sealed continuously.

Why Bag Construction Matters

Smooth chamber bags do not need embossed airflow channels because air is removed by changing the pressure of the entire chamber.

External vacuum is different. Once smooth film surfaces collapse against each other, the evacuation path can become restricted. Embossed bags maintain microscopic channels through which air can reach the vacuum port.

Bag compatibility is therefore not a minor accessory issue—it affects both operating cost and packaging reliability.

Double Sealing Is More Than a Product Feature

The chamber side of the CVS101 uses a 3mm × 2 double sealing bar, while external sealing uses one 3mm seal.

The purpose of two chamber seal lines is additional sealing redundancy, especially where moisture near the bag opening could affect seal integrity.

然而, seal quality cannot be judged by seal width alone. It depends on the relationship between:

Bag Material → Seal Time → Heat Input → Cooling → Seal Integrity

Important variables include:

•Film thickness

•Heat-seal layer composition

•Moisture at the sealing interface

•Seal-bar temperature

•Heating duration

•Cooling interval

•Repeated-cycle frequency

正因如此, YUMYTH provides adjustable Vac Time and Seal Time, together with Pulse control for more sensitive packaging conditions.

Package Dimensions Must Be Checked Before Machine Selection

Working width does not mean every 28cm bag will automatically fit inside the chamber.

The CVS101 supports:

•Chamber sealing width: up to 28cm

•External sealing width: up to 30cm

•Machine dimensions: 398 × 355 × 229mm

•Net weight: 10.5公斤

For chamber packaging, buyers also need to consider:

•Product height

•Product thickness

•Bag orientation

•Usable chamber space

•Required headspace above the seal

If the product exceeds practical chamber dimensions but remains suitable for external vacuum packaging, the external mode provides another processing route without requiring a second machine.

Repeated Sealing Depends on Thermal Management

Vacuum speed alone does not determine throughput.

Every operating cycle includes:

Evacuation → Sealing → Heat Dissipation → Next Cycle

During repeated use, the seal bar accumulates heat. Excessive temperature can change seal quality or trigger protective systems.

The CVS101 incorporates:

•NTC overheating protection

•Thermal fuse protection

•Adjustable sealing time

•Countdown display for cycle monitoring

YUMYTH rates the unit for 3,000 cycles and reports testing to 10,000 循环. These figures should be treated as manufacturer durability-test data rather than a guaranteed service life. Actual operating life varies with workload, heat settings, 维护, bag material, and environmental conditions.

Moist-Food Packaging Requires Better Residue Control

A Commercial Vacuum Sealer Machine used for moist food requires more frequent cleaning than a dry-food-only system.

A drip tray is one of many features CVS101 has to make daily cleaning easy. The materials of CVS101, like SUS430 stainless steel, ABS, tempered glass, 光滑曲面, and a detachable power cord, make cleaning more efficient.

The following should be examined on a periodic basis:

•Chamber and lid

•Gasket area

•Double sealing bars

•External vacuum channel

•滴水盘

•Accessory hose

Food and liquid particles should not build up around the sealing and vacuum paths to maintain consistent pressure and sealing.

Electrical and Compliance Should Be Verified Prior to Importing

YUMYTH adjusts CVS101 to the following:

•AC100 – 120V or AC220 – 240V

•50 – 60 Hz

•220 W rated power

Importers should verify voltage, plug configuration, electric, and food-contact documentation and complies with the market requirements before ordering.

欧洲联盟,UKCA,UL, ETL, RoHS, 河湾, or other standards should be confirmed against the applicable machine and market documents rather than assumed from general product information.

Is a Dual-Mode Commercial Vacuum Sealer Machine the Right Choice?

A dual-mode Commercial Vacuum Sealer Machine is particularly useful when the same operation handles liquid, 湿润, 干, smooth-bag, textured-bag, and different-size packaging tasks.

The CVS101 combines a -98kPa chamber system, -80kPa external vacuum, 40L/min chamber airflow, double chamber sealing, 脉冲控制, five-cycle marinating, accessory vacuuming, and removable liquid management in one coordinated platform.

For buyers evaluating whether chamber-and-external vacuum technology fits their packaging volume, bag specifications, and food categories, YUMYTH can provide CVS101 technical data and configuration information for a more accurate application assessment before purchase.

常见问题解答

问题1. How are chamber and external modes different on the YUMYTH CVS101?

Chamber mode decreases air pressure on the vacuum bag to -98kPa (used for moisture, 液体, and smooth bags), and external mode reaches -80kPa for use on textured vacuum bags and common dry food packaging.

问题2. Does the YUMYTH CVS101 Commercial Vacuum Sealer machine seal liquids?

是的. The CVS101 machine can vacuum seal liquids because of its chamber mode, and is even capable of moist food and liquid foods that contain sauces and marinades, and smooth meat and seafood.

问题3. What is the capacity of the CVS101 vacuum pump?

For the chamber mode, the vacuum system can process 40L/min of airflow, while the external mode processes 8L/min. Pump flow describes the rate of air displacement, while the -98kPa and -80kPa shows the lowest vacuum pressure achievable.

问4. What types of vacuum bags can be used with this Commercial Vacuum Sealer Machine?

The chamber mode works with smooth and textured vacuum bags. The external vacuum mode requires 纹理包 to allow air to flow properly during vacuuming.

问题5. What is the maximum bag width supported by the CVS101?

For the chamber mode, the maximum bag width is 28 cm, and for the external mode, the maximum bag width is 30 cm. For chamber packaging, it is important for buyers to know the overall height and thickness of the product, and if it will fit in the chamber.
